「防爆管道泵」ISGB防爆管道離心泵性能參數選型數據表精選

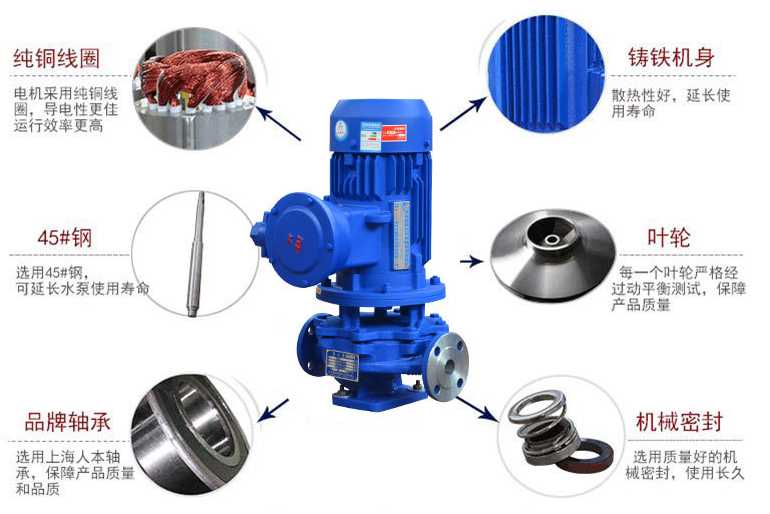

導讀：ISGB型管道離心泵廠 ，在普通ISG管道泵的基礎上電機采用Z新的節能防爆電機，在易燃易爆環境下適用，另外在煤礦井下工作也是具有優良性能，本產品所配電機具備粉塵防爆證，YB3,YBX3防爆合格證，節能環保證以及防爆MA煤安證書。 ISGB防爆管道離心泵型號 管道離心泵流量 防爆管道泵揚程 電機功率 (kw) 轉速 效率 汽蝕余量 (m3/h) (m) (r/min) (%) (m) ISGB15-80 1.5 8 0.18 2900 34 2.3 ISGB20-110 2.5...
ISGB型管道離心泵廠，在普通ISG管道泵的基礎上電機采用Z新的節能防爆電機，在易燃易爆環境下適用，另外在煤礦井下工作也是具有優良性能，本產品所配電機具備粉塵防爆證，YB3,YBX3防爆合格證，節能環保證以及防爆MA煤安證書。
| ISGB防爆管道離心泵型號 | 管道離心泵流量 | 防爆管道泵揚程 | 電機功率 (kw) | 轉速 | 效率 | 汽蝕余量 |
| (m3/h) | (m) | (r/min) | (%) | (m) | ||
| ISGB15-80 | 1.5 | 8 | 0.18 | 2900 | 34 | 2.3 |
| ISGB20-110 | 2.5 | 15 | 0.37 | 2900 | 34 | 2.3 |
| ISGB20-160 | 2.5 | 32 | 1.1 | 2900 | 25 | 2.3 |
| ISGB25-110 | 4 | 15 | 0.55 | 2900 | 42 | 2.3 |
| ISGB25-125 | 4 | 20 | 0.75 | 2900 | 36 | 2.3 |
| ISGB25-125A | 3.6 | 16 | 0.55 | 2900 | 35 | 2.3 |
| ISGB25-160 | 4 | 32 | 1.5 | 2900 | 32 | 2.3 |
| ISGB25-160A | 3.7 | 28 | 1.1 | 2900 | 31 | 2.3 |
| ISGB32-100 | 4.5 | 12.5 | 0.55 | 2900 | 56 | 2.3 |
| ISGB32-100(I) | 6.3 | 12.5 | 1.1 | 2900 | 54 | 2 |
| ISGB32-125 | 4.5 | 20 | 0.75 | 2900 | 45 | 2.3 |
| ISGB32-125(I) | 6.3 | 20 | 1.1 | 2900 | 43 | 2.3 |
| ISGB32-125(I)A | 4 | 16 | 0.55 | 2900 | 43 | 2.3 |
| ISGB32-160 | 4.5 | 32 | 1.1 | 2900 | 44 | 2.3 |
| ISGB32-160A | 4.5 | 25 | 1.1 | 2900 | 42 | 2.3 |
| ISGB32-160(I) | 6.3 | 32 | 2.2 | 2900 | 42 | 2.3 |
| ISGB32-200 | 4.5 | 50 | 3 | 2900 | 45 | 2.3 |
| ISGB32-200A | 4 | 40 | 2.2 | 2900 | 40 | 2.3 |
| ISGB32-200(I) | 6.3 | 50 | 4 | 2900 | 33 | 2 |
| ISGB40-100 | 6.3 | 12.5 | 0.55 | 2900 | 54 | 2.3 |
| ISGB40-100A | 5.6 | 10 | 0.37 | 2900 | 52 | 2.3 |
| ISGB40-125 | 6.3 | 20 | 1.1 | 2900 | 46 | 2.3 |
| ISGB40-125A | 5.6 | 16 | 0.75 | 2900 | 45 | 2.3 |
| ISGB40-160 | 6.3 | 32 | 2.2 | 2900 | 40 | 2.3 |
| ISGB40-160A | 5.9 | 28 | 1.5 | 2900 | 39 | 2.3 |
| ISGB40-160B | 5.2 | 24 | 1.1 | 2900 | 38 | 2.3 |
| ISGB40-200 | 6.3 | 50 | 4 | 2900 | 33 | 2.3 |
| ISGB40-200A | 5.9 | 44 | 3 | 2900 | 31 | 2.3 |
| ISGB40-200B | 5.5 | 38 | 2.2 | 2900 | 29 | 2.3 |
| ISGB40-250 | 6.3 | 80 | 7.5 | 2900 | 28 | 2.3 |
| ISGB40-250A | 5.9 | 70 | 5.5 | 2900 | 28 | 2.3 |
| ISGB40-250B | 5.5 | 60 | 4 | 2900 | 27 | 2.3 |
| ISGB40-100(I) | 12.5 | 12.5 | 1.1 | 2900 | 62 | 2.3 |
| ISGB40-125(I) | 12.5 | 20 | 1.5 | 2900 | 60 | 2.3 |
| ISGB40-125(I)A | 11.2 | 17.2 | 1.1 | 2900 | 58 | 2.3 |
| ISGB40-160(I) | 12.5 | 32 | 3 | 2900 | 52 | 2.3 |
| ISGB40-160(I)A | 11.7 | 28 | 2.2 | 2900 | 51 | 2.3 |
| ISGB40-160(I)B | 10.5 | 22.5 | 1.5 | 2900 | 50 | 2.3 |
| ISGB40-200(I) | 12.5 | 50 | 5.5 | 2900 | 46 | 2.3 |
| ISGB40-200(I)A | 11.7 | 40 | 4 | 2900 | 45 | 2.3 |
| ISGB40-200(I)B | 10.5 | 35 | 3 | 2900 | 44 | 2.3 |
| ISGB40-250(I) | 12.5 | 80 | 11 | 2900 | 38 | 2.3 |
| ISGB40-250(I)A | 11.7 | 70 | 7.5 | 2900 | 38 | 2.3 |
| ISGB40-250(I)B | 10.8 | 60 | 7.5 | 2900 | 37 | 2.3 |
| ISGB50-100 | 12.5 | 12.5 | 1.1 | 2900 | 62 | 2.3 |
| ISGB50-125 | 12.5 | 20 | 1.5 | 2900 | 58 | 2.3 |
| ISGB18598 | 11.2 | 17.2 | 1.1 | 2900 | 57 | 2.3 |
| ISGB50-160 | 12.5 | 32 | 3 | 2900 | 52 | 2.3 |
| ISGB50-160A | 11.7 | 28 | 2.2 | 2900 | 51 | 2.3 |
| ISGB50-160B | 10.5 | 22.5 | 1.5 | 2900 | 50 | 2.3 |
| ISGB50-200 | 12.5 | 50 | 5.5 | 2900 | 46 | 2.3 |
| ISGB50-200A | 11.7 | 44.5 | 4 | 2900 | 45 | 2.3 |
| ISGB50-200B | 10.5 | 35 | 3 | 2900 | 44 | 2.3 |
| ISGB50-250 | 12.5 | 80 | 11 | 2900 | 38 | 2.3 |
| ISGB50-250A | 11.7 | 70 | 7.5 | 2900 | 38 | 2.3 |
| ISGB50-250B | 10.8 | 60 | 7.5 | 2900 | 37 | 2.3 |
| ISGB50-100(I) | 25 | 12.5 | 1.5 | 2900 | 69 | 2.5 |
| ISGB50-100(I)A | 22.4 | 10 | 1.1 | 2900 | 67 | 2.5 |
| ISGB50-125(I) | 25 | 20 | 3 | 2900 | 68 | 2.5 |
| ISGB50-125(I)A | 22.4 | 16 | 2.2 | 2900 | 66 | 2.5 |
| ISGB50-160(I) | 25 | 32 | 4 | 2900 | 63 | 2.5 |
| ISGB50-160(I)A | 23.4 | 28 | 4 | 2900 | 62 | 2.5 |
| ISGB50-160(I)B | 21.6 | 24 | 3 | 2900 | 58 | 2.5 |
| ISGB50-200(I) | 25 | 50 | 7.5 | 2900 | 58 | 2.5 |
| ISGB50-200(I)A | 23.4 | 44 | 7.5 | 2900 | 57 | 2.5 |
| ISGB50-200(I)B | 21.6 | 37 | 5.5 | 2900 | 55 | 2.5 |
| ISGB50-250(I) | 25 | 80 | 15 | 2900 | 50 | 2.5 |
| ISGB50-250(I)A | 23.4 | 70 | 11 | 2900 | 50 | 2.5 |
| ISGB50-250(I)B | 21.6 | 60 | 11 | 2900 | 49 | 2.5 |
| ISGB50-315(I) | 25 | 125 | 30 | 2900 | 40 | 2.5 |
| ISGB50-315(I)A | 23.4 | 110 | 22 | 2900 | 40 | 2.5 |
| ISGB50-315(I)B | 21.6 | 93 | 18.5 | 2900 | 39 | 2.5 |
| ISGB65-100 | 25 | 12.5 | 1.5 | 2900 | 69 | 2.5 |
| ISGB65-100A | 22.4 | 10 | 1.1 | 2900 | 67 | 2.5 |
| ISGB65-125 | 25 | 20 | 3 | 2900 | 68 | 2.5 |
| ISGB65-125A | 22.4 | 16 | 2.2 | 2900 | 66 | 2.5 |
| ISGB65-160 | 25 | 32 | 4 | 2900 | 63 | 2.5 |
| ISGB65-160A | 23.4 | 28 | 4 | 2900 | 62 | 2.5 |
| ISGB65-160B | 21.6 | 24 | 3 | 2900 | 58 | 2.5 |
| ISGB65-200 | 25 | 50 | 7.5 | 2900 | 58 | 2.5 |
| ISGB65-200A | 23.4 | 44 | 7.5 | 2900 | 57 | 2.5 |
| ISGB65-200B | 21.6 | 37 | 5.5 | 2900 | 55 | 2.5 |
| ISGB65-250 | 25 | 80 | 15 | 2900 | 50 | 2.5 |
| ISGB65-250A | 23.4 | 70 | 11 | 2900 | 50 | 2.5 |
| ISGB65-250B | 21.6 | 60 | 11 | 2900 | 49 | 2.5 |
| ISGB65-315 | 25 | 125 | 30 | 2900 | 40 | 2.5 |
| ISGB65-315A | 23.4 | 110 | 22 | 2900 | 40 | 2.5 |
| ISGB65-315B | 21.6 | 93 | 18.5 | 2900 | 39 | 2.5 |
| ISGB65-100(I) | 50 | 12.5 | 3 | 2900 | 73 | 3 |
| ISGB65-100(I)A | 44.8 | 10 | 2.2 | 2900 | 72 | 3 |
| ISGB65-125(I) | 50 | 20 | 5.5 | 2900 | 72.5 | 3 |
| ISGB65-125(I)A | 44.8 | 16 | 4 | 2900 | 71 | 3 |
| ISGB65-160(I) | 50 | 32 | 7.5 | 2900 | 71 | 3 |
| ISGB65-160(I)A | 46.8 | 28 | 7.5 | 2900 | 70 | 3 |
| ISGB65-160(I)B | 43.2 | 24 | 5.5 | 2900 | 69 | 3 |
| ISGB65-200(I) | 50 | 50 | 15 | 2900 | 67 | 3 |
| ISGB65-200(I)A | 46.8 | 44 | 11 | 2900 | 66 | 3 |
| ISGB65-200(I)B | 43 | 37 | 7.5 | 2900 | 65 | 3 |
| ISGB65-250(I) | 50 | 80 | 22 | 2900 | 59 | 3 |
| ISGB65-250(I)A | 46.8 | 70 | 18.5 | 2900 | 59 | 3 |
| ISGB65-250(I)B | 43 | 60 | 15 | 2900 | 58 | 3 |
| ISGB65-315(I) | 50 | 125 | 37 | 2900 | 54 | 3 |
| ISGB65-315(I)A | 45.8 | 105 | 30 | 2900 | 54 | 3 |
| ISGB65-315(I)B | 43 | 93 | 30 | 2900 | 53 | 3 |
| ISGB80-100 | 50 | 12.5 | 3 | 2900 | 73 | 3 |
| ISGB80-100A | 44.8 | 10 | 2.2 | 2900 | 72 | 3 |
| ISGB80-125 | 50 | 20 | 5.5 | 2900 | 72.5 | 3 |
| ISGB80-125A | 44.8 | 16 | 4 | 2900 | 71 | 3 |
| ISGB80-160 | 50 | 32 | 7.5 | 2900 | 71 | 3 |
| ISGB80-160A | 46.8 | 28 | 7.5 | 2900 | 70 | 3 |
| ISGB80-160B | 43.2 | 24 | 5.5 | 2900 | 69 | 3 |
| ISGB80-200 | 50 | 50 | 15 | 2900 | 67 | 3 |
| ISGB80-200A | 46.8 | 44 | 11 | 2900 | 66 | 3 |
| ISGB80-200B | 43 | 37 | 7.5 | 2900 | 65 | 3 |
| ISGB80-250 | 50 | 80 | 22 | 2900 | 59 | 3 |
| ISGB80-250A | 46.8 | 70 | 18.5 | 2900 | 59 | 3 |
| ISGB80-250B | 43 | 60 | 15 | 2900 | 58 | 3 |
| ISGB80-315 | 50 | 125 | 37 | 2900 | 54 | 3 |
| ISGB80-315A | 45.8 | 105 | 30 | 2900 | 54 | 3 |
| ISGB80-315B | 43 | 93 | 30 | 2900 | 53 | 3 |
| ISGB80-315C | 41 | 85 | 22 | 2900 | 51 | 3 |
| ISGB80-350 | 50 | 150 | 55 | 2900 | 66 | 3 |
| ISGB80-350A | 44 | 142 | 45 | 2900 | 65 | 3 |
| ISGB80-350B | 40 | 135 | 37 | 2900 | 63 | 3 |
| ISGB80-100(I) | 100 | 12.5 | 5.5 | 2900 | 76 | 4.5 |
| ISGB80-100(I)A | 89 | 10 | 4 | 2900 | 74 | 4.5 |
| ISGB80-125(I) | 100 | 20 | 11 | 2900 | 76 | 4.5 |
| ISGB80-125(I)A | 89 | 16 | 7.5 | 2900 | 74 | 4.5 |
| ISGB80-160(I) | 100 | 32 | 15 | 2900 | 76 | 4.5 |
| ISGB80-160(I)A | 93.5 | 28 | 11 | 2900 | 74 | 4.5 |
| ISGB80-160(I)B | 86.4 | 24 | 11 | 2900 | 72 | 4.5 |
| ISGB80-200(I) | 100 | 50 | 22 | 2900 | 74 | 4 |
| ISGB80-200(I)A | 93.5 | 44 | 18.5 | 2900 | 73 | 4 |
| ISGB80-200(I)B | 86.4 | 37 | 15 | 2900 | 71 | 4 |
| ISGB80-250(I) | 100 | 80 | 37 | 2900 | 69 | >4.0 |
| ISGB80-250(I)A | 93.5 | 70 | 30 | 2900 | 68 | 4 |
| ISGB80-250(I)B | 86.4 | 60 | 30 | 2900 | 66 | 4 |
| ISGB80-315(I) | 100 | 125 | 75 | 2900 | 66 | 4 |
| ISGB80-315(I)A | 93.5 | 110 | 55 | 2900 | 66 | 4 |
| ISGB80-315(I)B | 86.4 | 93 | 45 | 2900 | 65 | 4 |
| ISGB80-315(I)C | 82 | 85 | 37 | 2900 | 63 | 4 |
| ISGB100-100 | 100 | 12.5 | 5.5 | 2900 | 76 | 4.5 |
| ISGB100-100A | 89 | 10 | 4 | 2900 | 74 | 4.5 |
| ISGB100-125 | 100 | 20 | 11 | 2900 | 76 | 4.5 |
| ISGB100-125A | 89 | 16 | 7.5 | 2900 | 74 | 4.5 |
| ISGB100-160 | 100 | 32 | 15 | 2900 | 76 | 4.5 |
| ISGB100-160A | 93.5 | 28 | 11 | 2900 | 74 | 4.5 |
| ISGB100-160B | 86.4 | 24 | 11 | 2900 | 72 | 4.5 |
| ISGB100-200 | 100 | 50 | 22 | 2900 | 74 | 4 |
| ISGB100-200A | 93.5 | 44 | 18.5 | 2900 | 73 | 4 |
| ISGB100-200B | 86.4 | 37 | 15 | 2900 | 71 | 4 |
| ISGB100-250 | 100 | 80 | 37 | 2900 | 69 | 4 |
| ISGB100-250A | 93.5 | 70 | 30 | 2900 | 68 | 4 |
| ISGB100-250B | 86.4 | 60 | 30 | 2900 | 66 | 4 |
| ISGB100-315 | 100 | 125 | 75 | 2900 | 66 | 4 |
| ISGB100-315A | 93.5 | 110 | 55 | 2900 | 66 | 4 |
| ISGB100-315B | 86.4 | 93 | 45 | 2900 | 65 | 4 |
| ISGB100-100(I) | 160 | 12.5 | 11 | 2900 | 73 | 4.5 |
| ISGB100-125(I) | 160 | 20 | 15 | 2900 | 74 | 4.5 |
| ISGB100-125(I)A | 143 | 16 | 11 | 2900 | 72 | 4.5 |
| ISGB100-160(I) | 160 | 32 | 22 | 2900 | 79 | 5.6 |
| ISGB100-160(I)A | 150 | 28 | 18.5 | 2900 | 76 | 5 |
| ISGB100-200(I) | 160 | 50 | 37 | 2900 | 79 | 5.2 |
| ISGB100-200(I)A | 150 | 45 | 30 | 2900 | 74 | 4.5 |
| ISGB100-200(I)B | 138 | 40 | 22 | 2900 | 72 | 4.5 |
| ISGB100-250(I) | 160 | 80 | 55 | 2900 | 77 | 4.8 |
| ISGB100-250(I)A | 140 | 70 | 45 | 2900 | 72 | 4.5 |
| ISGB100-250(I)B | 100 | 65 | 37 | 2900 | 70 | 4.5 |
| ISGB100-350 | 100 | 150 | 90 | 2900 | 57 | 4 |
| ISGB100-350A | 87 | 142 | 75 | 2900 | 75 | 4 |
| ISGB100-350B | 82 | 135 | 55 | 2900 | 75 | 4 |
| ISGB125-100 | 160 | 12.5 | 11 | 2900 | 82 | 4 |
| ISGB125-100A | 143 | 10 | 7.5 | 2900 | 77 | 4 |
| ISGB125-125 | 160 | 20 | 15 | 2900 | 80 | 4 |
| ISGB125-125A | 143 | 16 | 11 | 2900 | 77 | 4 |
| ISGB125-160 | 200 | 32 | 30 | 2900 | 78 | 4 |
| ISGB125-160A | 187 | 28 | 22 | 2900 | 76 | 4 |
| ISGB125-160B | 180 | 24.5 | 18.5 | 2900 | 73 | 4 |
| ISGB125-200 | 200 | 50 | 45 | 2900 | 77 | 5.5 |
| ISGB125-200A | 187 | 44 | 37 | 2900 | 76 | 5.5 |
| ISGB125-200B | 172 | 37 | 30 | 2900 | 75 | 5.5 |
| ISGB125-250 | 200 | 80 | 75 | 2900 | 75 | 5 |
| ISGB125-250A | 187 | 70 | 55 | 2900 | 74 | 5.5 |
| ISGB125-250B | 172 | 60 | 45 | 2900 | 73 | 5.5 |
| ISGB125-315 | 200 | 125 | 110 | 2900 | 70 | 5 |
| ISGB125-315A | 187 | 110 | 90 | 2900 | 70 | 5 |
| ISGB125-315B | 172 | 93 | 75 | 2900 | 69 | 5 |
| ISGB125-315C | 160 | 78 | 55 | 2900 | 67 | 5 |
| ISGB150-125 | 160 | 20 | 11 | 2900 | 76 | 4 |
| ISGB150-125A | 150 | 16 | 7.5 | 2900 | 77 | 4 |
| ISGB150-160 | 160 | 32 | 22 | 2900 | 75 | 4 |
| ISGB150-160A | 150 | 28 | 18.5 | 2900 | 76 | 4 |
| ISGB150-160B | 140 | 24 | 15 | 2900 | 73 | 4 |
| ISGB150-200 | 160 | 50 | 37 | 2900 | 77 | 5.5 |
| ISGB150-200A | 150 | 44 | 30 | 2900 | 76 | 5.5 |
| ISGB150-200B | 140 | 38 | 22 | 2900 | 75 | 5.5 |
| ISGB150-250 | 200 | 80 | 75 | 2900 | 75 | 5 |
| ISGB150-250A | 187 | 70 | 55 | 2900 | 74 | 5.5 |
| ISGB150-250B | 172 | 60 | 45 | 2900 | 73 | 5.5 |
| ISGB150-315 | 200 | 125 | 110 | 2900 | 70 | 5 |
| ISGB150-315A | 187 | 110 | 90 | 2900 | 70 | 5 |
| ISGB150-315B | 172 | 93 | 75 | 2900 | 69 | 5 |
以上為我公司生產的ISGB防爆管道離心泵大部分性能參數,用戶可根據些表選擇自己需要的型號,如有其他要求請致電我公司.
